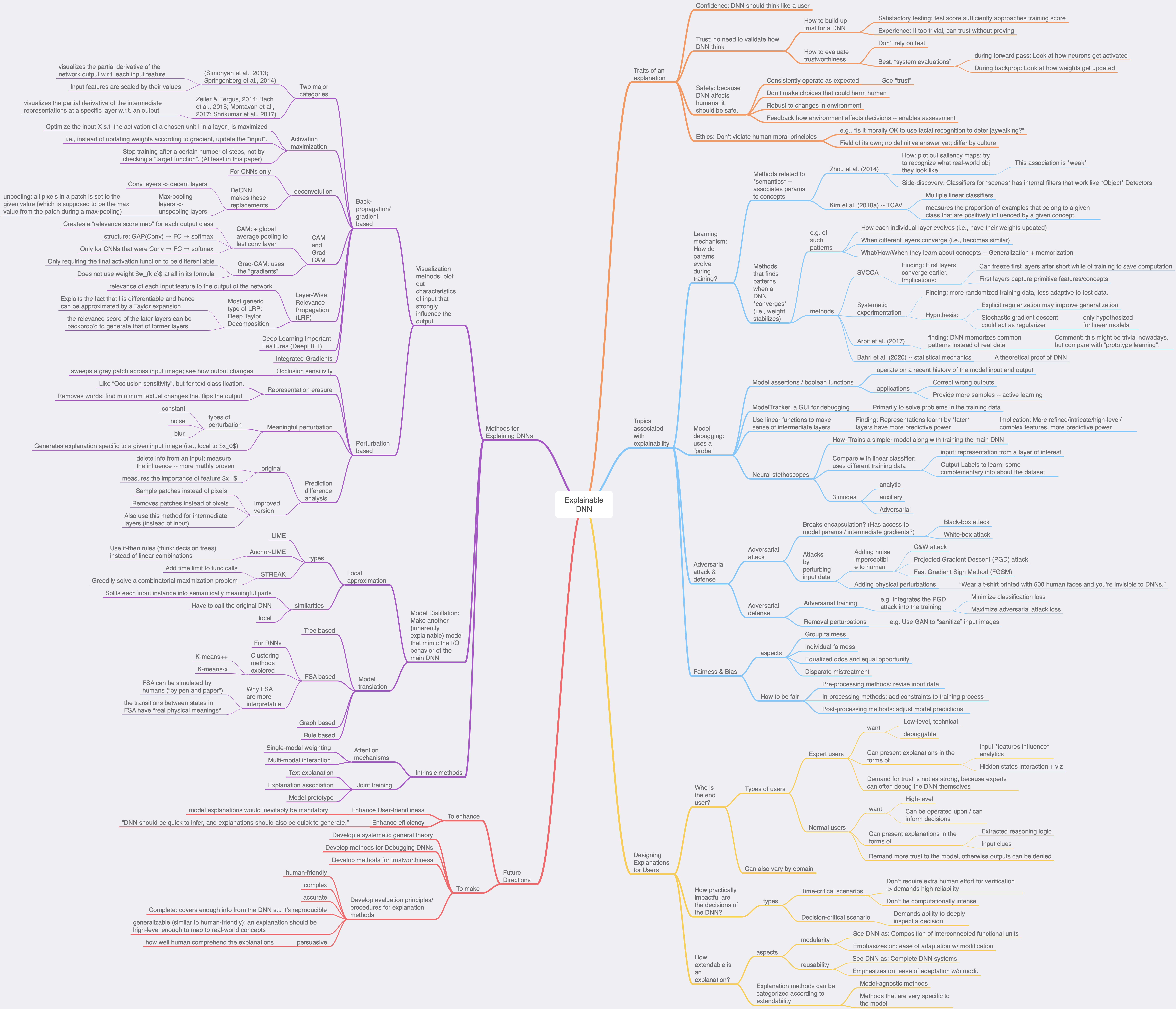

Explainable Deep Learning

Based on Explainable Deep Learning: A Field Guide for the Uninitiated (

Explainable DNN

Traits of an explanation

Confidence: DNN should think like a user

Trust: no need to validate how DNN think

  • How to build up trust for a DNN
    • Satisfactory testing: test score sufficiently approaches training score
    • Experience: If too trivial, can trust without proving
  • How to evaluate trustworthiness
    • Don’t rely on test
    • Best: “system evaluations”
      • during forward pass: Look at how neurons get activated
      • During backprop: Look at how weights get updated

Safety: because DNN affects humans, it should be safe.

  • Consistently operate as expected
    • See "trust"
  • Don’t make choices that could harm human
  • Robust to changes in environment
  • Feedback how environment affects decisions -- enables assessment

Ethics: Don’t violate human moral principles

  • e.g., “Is it morally OK to use facial recognition to deter jaywalking?”
  • Field of its own; no definitive answer yet; differ by culture

Topics associated with explainability

Learning mechanism: How do params evolve during training?

  • Methods related to semantics -- associates params to concepts
    • Zhou et al. (2014)
      • How: plot out saliency maps; try to recognize what real-world obj they look like.
        • This association is weak
      • Side-discovery: Classifiers for scenes has internal filters that work like Object Detectors
    • Kim et al. (2018a) -- TCAV
      • Multiple linear classifiers
      • measures the proportion of examples that belong to a given class that are positively influenced by a given concept.
  • Methods that finds patterns when a DNN converges (i.e., weight stabilizes)
    • e.g. of such patterns
      • How each individual layer evolves (i.e., have their weights updated)
      • When different layers converge (i.e., becomes similar)
      • What/How/When they learn about concepts -- Generalization + memorization
    • methods
      • SVCCA
        • Finding: First layers converge earlier. Implications:
          • Can freeze first layers after short while of training to save computation
          • First layers capture primitive features/concepts
      • Systematic experimentation
        • Finding: more randomized training data, less adaptive to test data.
        • Hypothesis:
          • Explicit regularization may improve generalization
          • Stochastic gradient descent could act as regularizer
            • only hypothesized for linear models
      • Arpit et al. (2017)
        • finding: DNN memorizes common patterns instead of real data
          • Comment: this might be trivial nowadays, but compare with “prototype learning".
      • Bahri et al. (2020) -- statistical mechanics
        • A theoretical proof of DNN

Model debugging: uses a “probe”

  • Model assertions / boolean functions
    • operate on a recent history of the model input and output
    • applications
      • Correct wrong outputs
      • Provide more samples -- active learning
  • ModelTracker, a GUI for debugging
    • Primarily to solve problems in the training data
  • Use linear functions to make sense of intermediate layers
    • Finding: Representations learnt by later layers have more predictive power
      • Implication: More refined/intricate/high-level/complex features, more predictive power.
  • Neural stethoscopes
    • How: Trains a simpler model along with training the main DNN
    • Compare with linear classifier: uses different training data
      • input: representation from a layer of interest
      • Output Labels to learn: some complementary info about the dataset
    • 3 modes
      • analytic
      • auxiliary
      • Adversarial

Adversarial attack & defense

  • Adversarial attack
    • Breaks encapsulation? (Has access to model params / intermediate gradients?)
      • Black-box attack
      • White-box attack
    • Attacks by perturbing input data
      • Adding noise imperceptible to human
        • C&W attack
        • Projected Gradient Descent (PGD) attack
        • Fast Gradient Sign Method (FGSM)
      • Adding physical perturbations
        • “Wear a t-shirt printed with 500 human faces and you’re invisible to DNNs.”
  • Adversarial defense
    • Adversarial training
      • e.g. Integrates the PGD attack into the training
        • Minimize classification loss
        • Maximize adversarial attack loss
    • Removal perturbations
      • e.g. Use GAN to “sanitize” input images

Fairness & Bias

  • aspects
    • Group fairness
    • Individual fairness
    • Equalized odds and equal opportunity
    • Disparate mistreatment
  • How to be fair
    • Pre-processing methods: revise input data
    • In-processing methods: add constraints to training process
    • Post-processing methods: adjust model predictions

Future Directions

To enhance

  • Enhance User-friendliness
    • model explanations would inevitably be mandatory
  • Enhance efficiency
    • “DNN should be quick to infer, and explanations should also be quick to generate.”

To make

  • Develop a systematic general theory
  • Develop methods for Debugging DNNs
  • Develop methods for trustworthiness
  • Develop evaluation principles/procedures for explanation methods
    • human-friendly
    • complex
    • accurate
    • Complete: covers enough info from the DNN s.t. it’s reproducible
    • generalizable (similar to human-friendly): an explanation should be high-level enough to map to real-world concepts
    • persuasive
      • how well human comprehend the explanations

Designing Explanations for Users

Who is the end user?

  • Types of users
    • Expert users
      • want
        • Low-level, technical
        • debuggable
      • Can present explanations in the forms of
        • Input features influence analytics
        • Hidden states interaction + viz
      • Demand for trust is not as strong, because experts can often debug the DNN themselves
    • Normal users
      • want
        • High-level
        • Can be operated upon / can inform decisions
      • Can present explanations in the forms of
        • Extracted reasoning logic
        • Input clues
      • Demand more trust to the model, otherwise outputs can be denied
  • Can also vary by domain

How practically impactful are the decisions of the DNN?

  • types
    • Time-critical scenarios
      • Don’t require extra human effort for verification -> demands high reliability
      • Don’t be computationally intense
    • Decision-critical scenario
      • Demands ability to deeply inspect a decision

How extendable is an explanation?

  • aspects
    • modularity
      • See DNN as: Composition of interconnected functional units
      • Emphasizes on: ease of adaptation w/ modification
    • reusability
      • See DNN as: Complete DNN systems
      • Emphasizes on: ease of adaptation w/o modi.
  • Explanation methods can be categorized according to extendability
    • Model-agnostic methods
    • Methods that are very specific to the model

Methods for Explaining DNNs

Visualization methods: plot out characteristics of input that strongly influence the output

  • Back-propagation/gradient based
    • Two major categories
      • (Simonyan et al., 2013; Springenberg et al., 2014)
        • visualizes the partial derivative of the network output w.r.t. each input feature
        • Input features are scaled by their values
      • Zeiler & Fergus, 2014; Bach et al., 2015; Montavon et al., 2017; Shrikumar et al., 2017)
        • visualizes the partial derivative of the intermediate representations at a specific layer w.r.t. an output
    • Activation maximization
      • Optimize the input X s.t. the activation of a chosen unit I in a layer j is maximized
      • i.e., instead of updating weights according to gradient, update the input.
      • Stop training after a certain number of steps, not by checking a “target function”. (At least in this paper)
    • deconvolution
      • For CNNs only
      • DeCNN makes these replacements
        • Conv layers -> decent layers
        • Max-pooling layers -> unspooling layers
          • unpooling: all pixels in a patch is set to the given value (which is supposed to be the max value from the patch during a max-pooling)
    • CAM and Grad-CAM
      • CAM: + global average pooling to last conv layer
        • Creates a “relevance score map" for each output class
        • structure: GAP(Conv) → FC → softmax
        • Only for CNNs that were Conv → FC → softmax
      • Grad-CAM: uses the gradients
        • Only requiring the final activation function to be differentiable
        • Does not use weight $w_{k,c}$ at all in its formula
    • Layer-Wise Relevance Propagation (LRP)
      • relevance of each input feature to the output of the network
      • Most generic type of LRP: Deep Taylor Decomposition
        • Exploits the fact that f is differentiable and hence can be approximated by a Taylor expansion
        • the relevance score of the later layers can be backprop’d to generate that of former layers
    • Deep Learning Important FeaTures (DeepLIFT)
    • Integrated Gradients
  • Perturbation based
    • Occlusion sensitivity
      • sweeps a grey patch across input image; see how output changes
    • Representation erasure
      • Like “Occlusion sensitivity”, but for text classification.
      • Removes words; find minimum textual changes that flips the output
    • Meaningful perturbation
      • types of perturbation
        • constant
        • noise
        • blur
      • Generates explanation specific to a given input image (i.e., local to $x_0$)
    • Prediction difference analysis
      • original
        • delete info from an input; measure the influence -- more mathly proven
        • measures the importance of feature $x_i$
      • Improved version
        • Sample patches instead of pixels
        • Removes patches instead of pixels
        • Also use this method for intermediate layers (instead of input)

Model Distillation: Make another (inherently explainable) model that mimic the I/O behavior of the main DNN

  • Local approximation
    • types
      • LIME
      • Anchor-LIME
        • Use if-then rules (think: decision trees) instead of linear combinations
      • STREAK
        • Add time limit to func calls
        • Greedily solve a combinatorial maximization problem
    • similarities
      • Splits each input instance into semantically meaningful parts
      • Have to call the original DNN
      • local
  • Model translation
    • Tree based
    • FSA based
      • For RNNs
      • Clustering methods explored
        • K-means++
        • K-means-x
      • Why FSA are more interpretable
        • FSA can be simulated by humans (“by pen and paper”)
        • the transitions between states in FSA have real physical meanings
    • Graph based
    • Rule based

Intrinsic methods

  • Attention mechanisms
    • Single-modal weighting
    • Multi-modal interaction
  • Joint training
    • Text explanation
    • Explanation association
    • Model prototype
